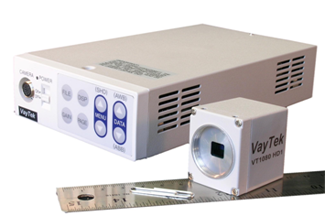

VT-1080 HD 1 -- 3CCD HD Camera

True High Definition from the World’s Smallest Camera Head

HD 3CCD Color Camera System gives you the sharpest, clearest, true color imagery available – from the most compact HD camera on the market. The unique prism block technology delivers impeccably sharp detail from a 1.6” camera head. Let VayTek bring your project to HD life.


Applications

  • Pathology Review
  • Cell Biology
  • Fluorescent Imaging
  • Cytogenetics

Features

  • 1080i output
  • 1920 x 1080 output pixels
  • 3CCD (1/3”) interlace
  • C-mount
  • Digital HD-SDI (SMPTE 292M); Analog RGB or Y/ Pb/ Pr
  • RS 232C serial interface
  • Auto & manual white balance
  • Pre-programed Scene Files for best automatic operation
  • Auto Black Balance with Hot Pixel Mask
  • Automatic Shading Correction
  • Perfect Color with adjustment of Yellow, Cyan, Magenta, Red and Blue
  • Optional accessories: 3, 6, 10 & 30 meter cables




Download PDF
